- This is a CONSUMER device.

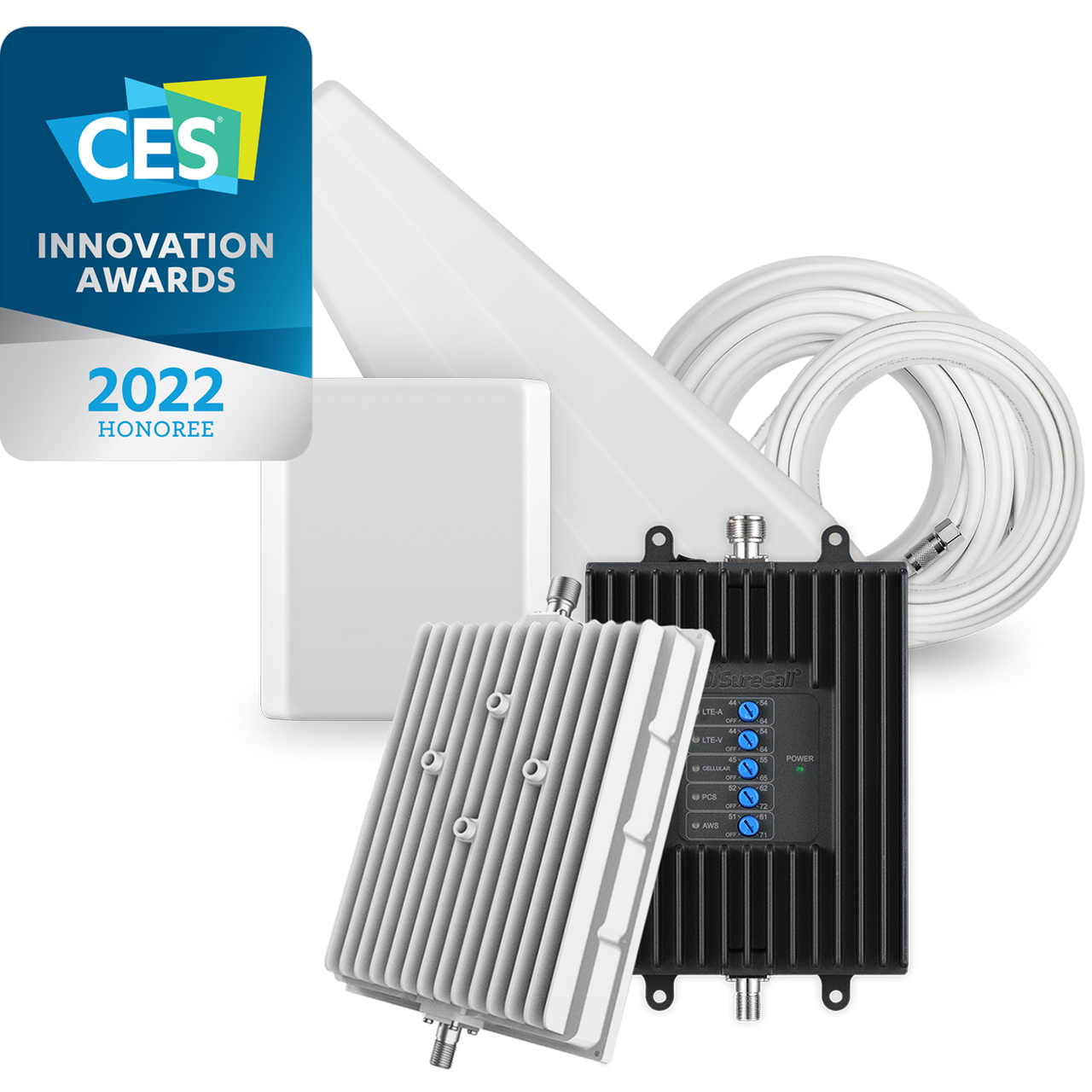

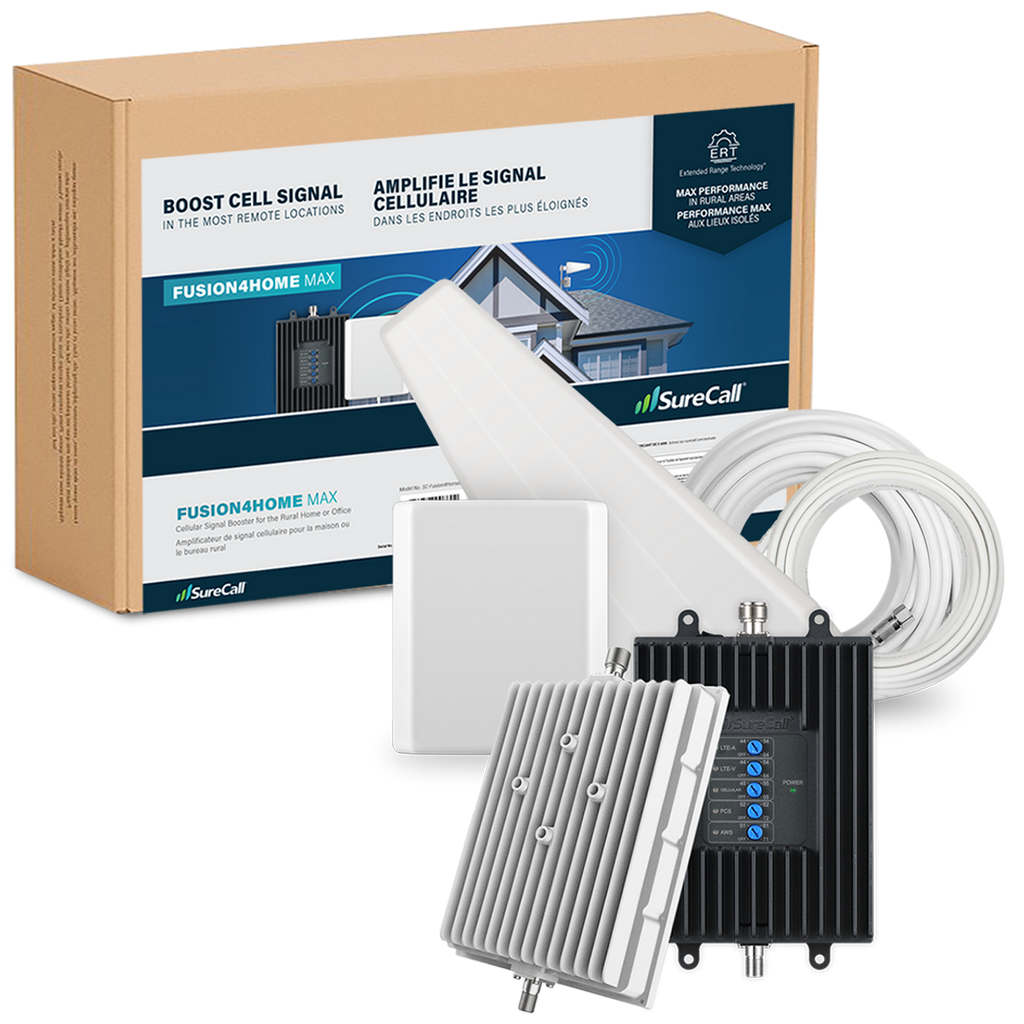

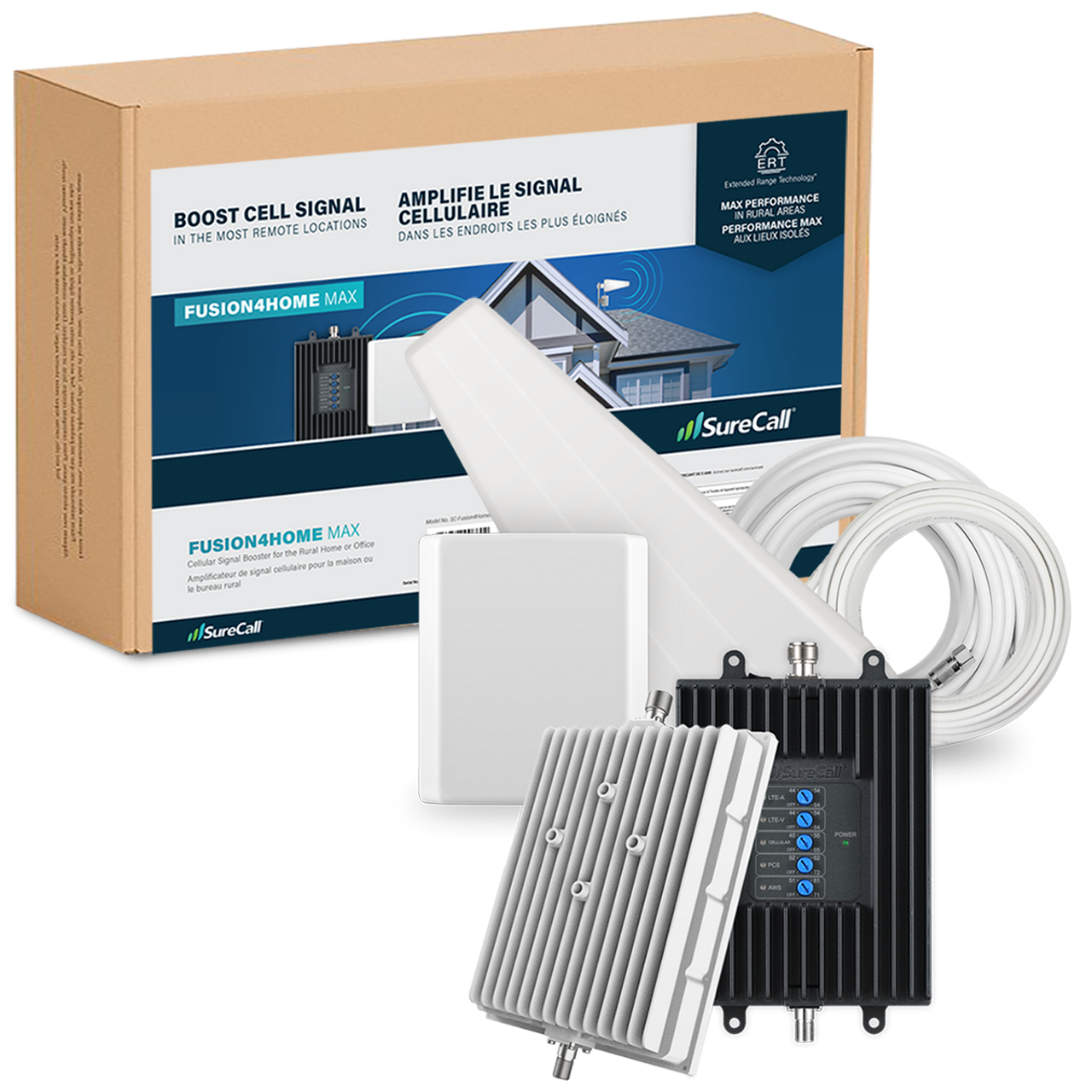

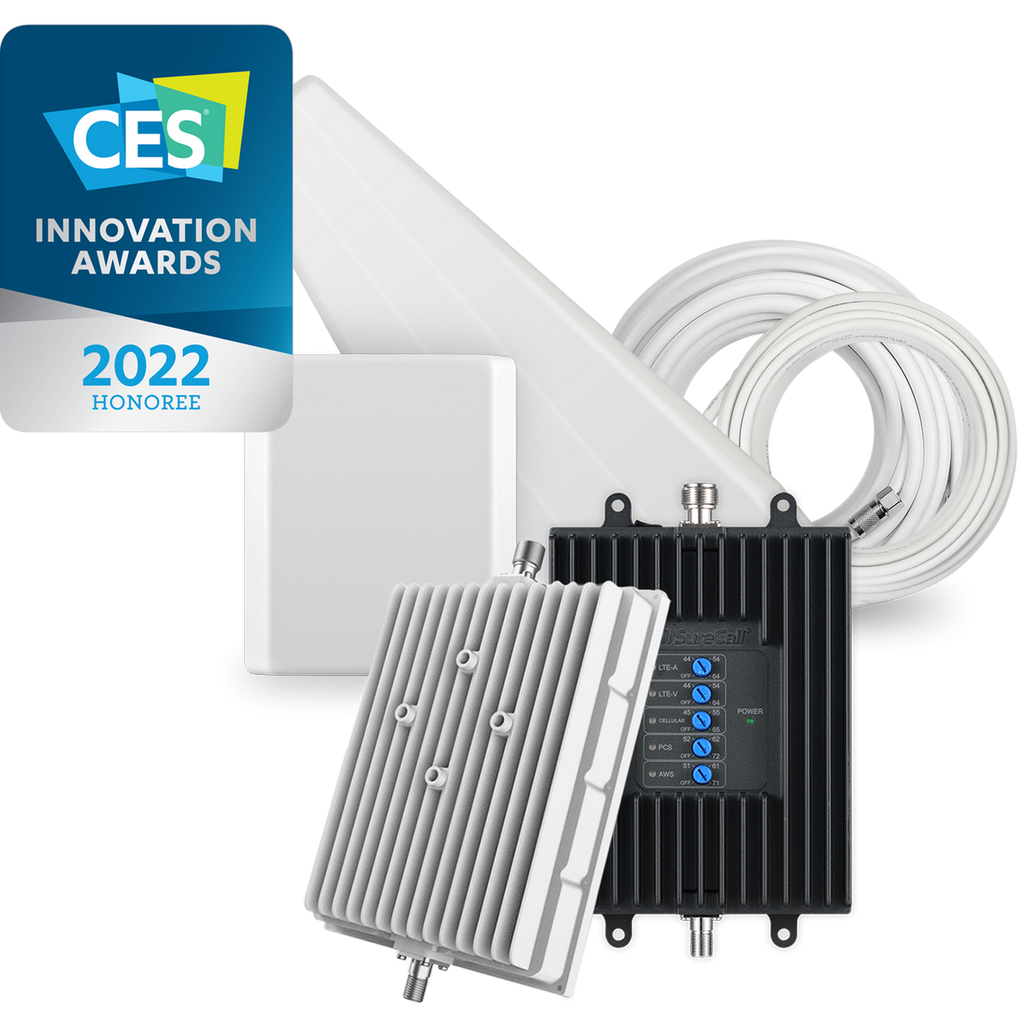

CES 2022 INNOVATION AWARD – Fix dropped calls, text, and cellular data with the award-winning Fusion4Home Max- the most powerful cell phone signal booster for suburban and rural homes.

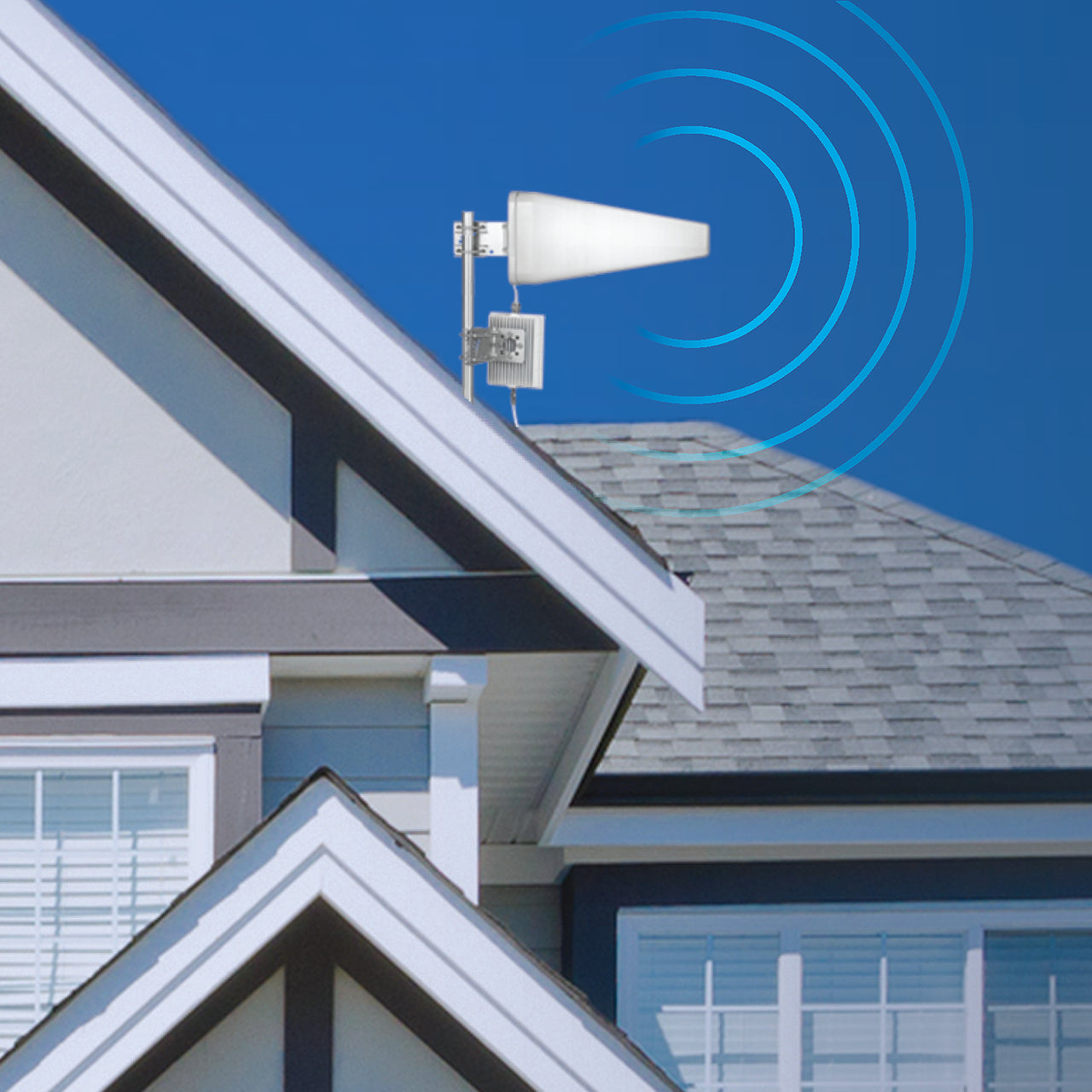

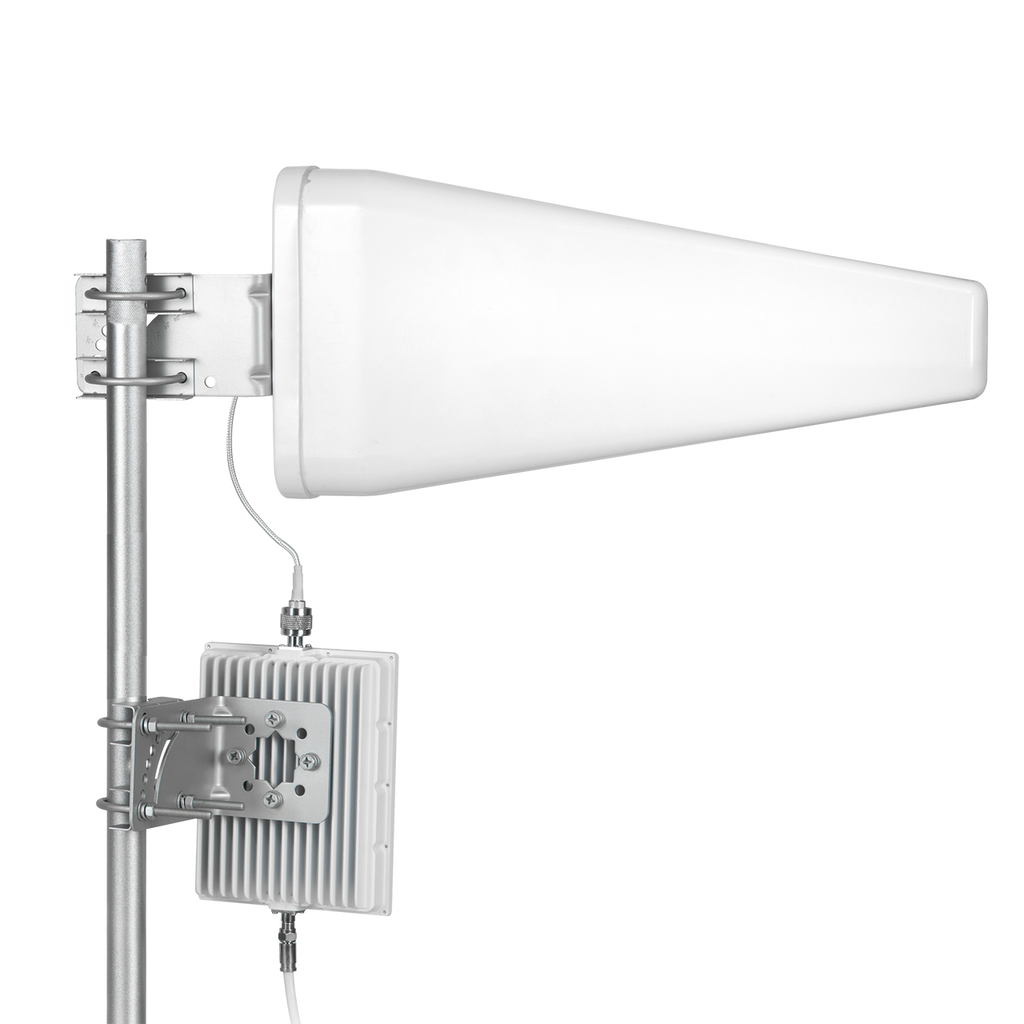

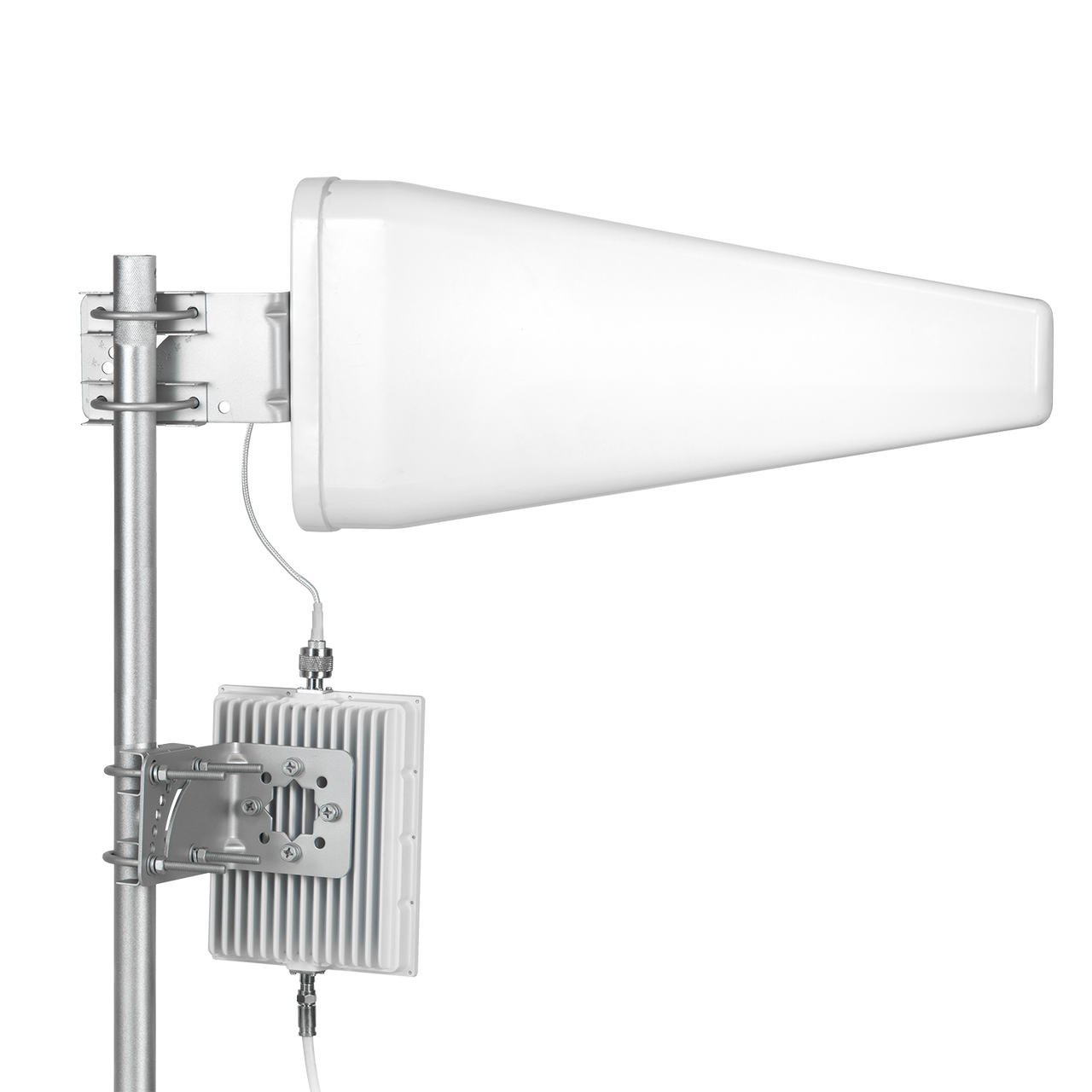

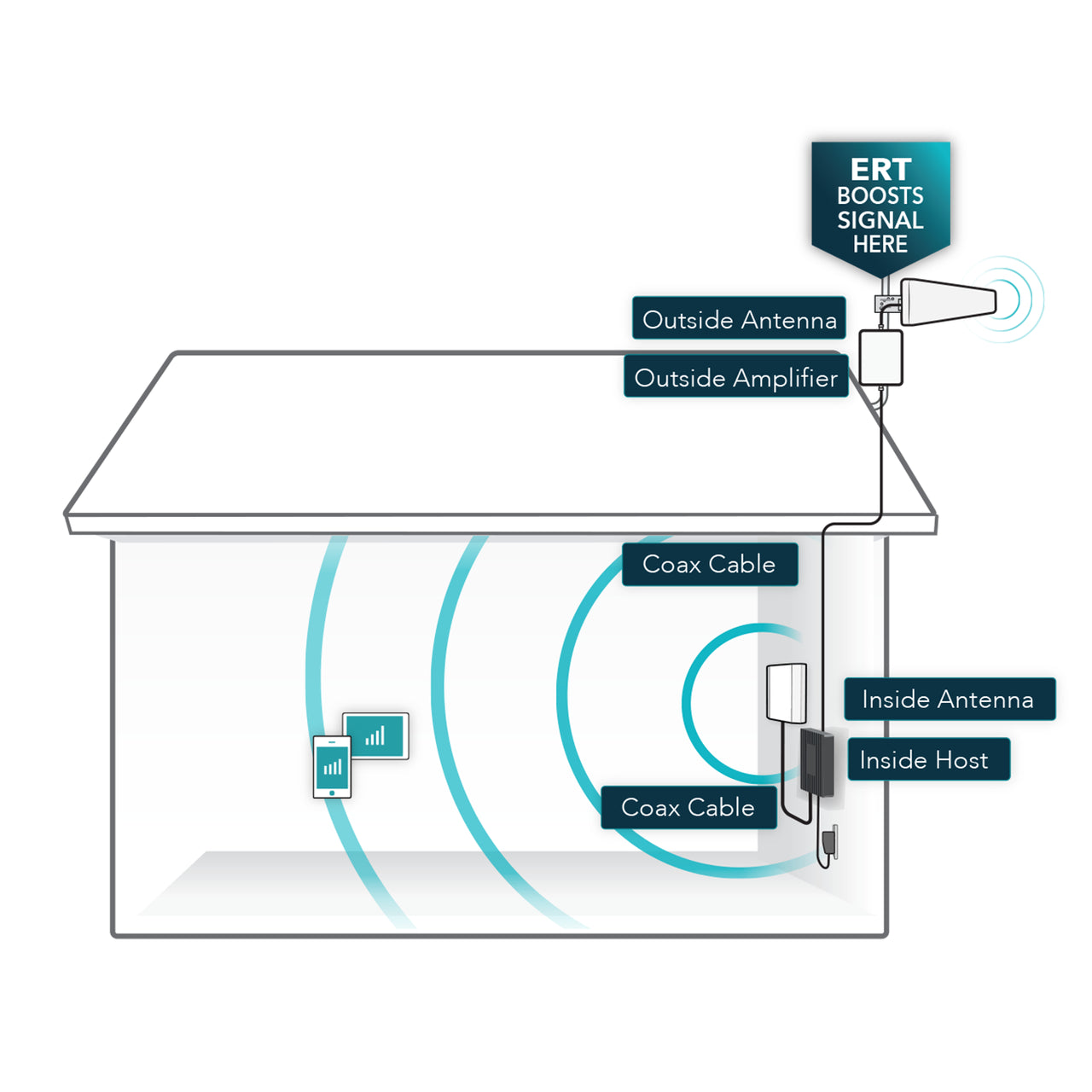

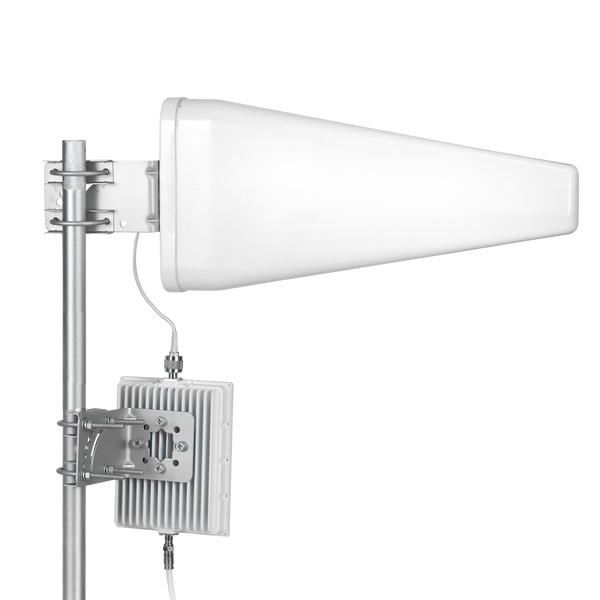

Fusion4Home Max is the first home cell phone signal booster to feature SureCall’s patented Extended Range Technology™ (ERT) which places a booster on the roof to overcome signal loss in the outdoor cable. By eliminating loss in the coax cable ERT is able to send stronger 5G/4G LTE signal indoors to provide a larger coverage area and send a stronger signal back to the cell tower. Designed, assembled and tested in the USA with outstanding build quality, award-winning technologies, all-carrier compatibility, and world-class support, Fusion4Home Max is the premier booster for homes in suburban and rural areas. Includes industry leading 3-year warranty and lifetime US-based tech support.
- MAXIMUM COVERAGE Highest system gain in its class and exclusive ERT reduces signal loss in the cable to provide maximum indoor coverage
- MAXIMUM CONNECTIVITY Patented 2XP technology and outdoor booster placement doubles the transmit power back to the cell tower ensuring a strong reliable connection even in the most rural homes
- MAXIMUM DATA PERFORMANCE Highest signal quality increases data throughput for a more consistent streaming experience on all 5G & 4G LTE phones and mobile devices
- MAXIMUM BATTERY LIFE Drastically boosted signal strength means cell users in remote areas won't need to recharge their mobile device multiple times per day
- Improves 5G/4G LTE voice, text and data signals for multiple simultaneous users on all North American cell carriers
- 5G Compatible– Fusion4Home Max boosts all 5G & 4G LTE devices, including hotspots
- FCC-certified amplifiers built with the highest quality materials for longevity and connectivity when you need it most
|
Uplink Frequency Range (MHz): |
698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included) |
|
Downlink Frequency Range (MHz): |
728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included) |
|
Supported Standards: |
CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards |
|
Impedance: |
50 Ohm |
|
Maximum Gain: |
72 dB |
|
Maximum Uplink Power: |
26 dBm |
|
Noise Figure: |
<8 dB |
|
VSWR: |
≤2.0 |
|
AC Power Transmitter: |
Input AC 110 V, 60 Hz / Output DC 15 V |
|
Maximum Output Power: |
1 Watt EIRP |
|
Cable: |

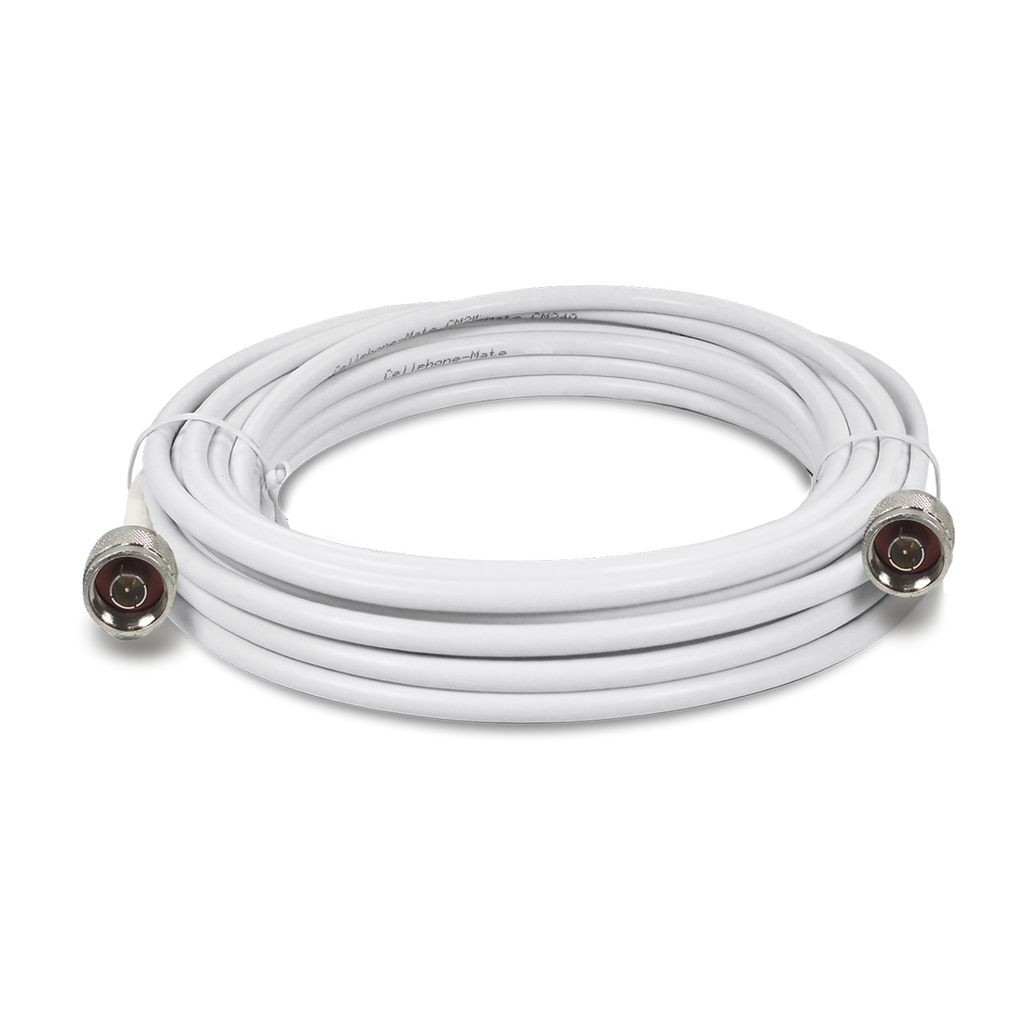

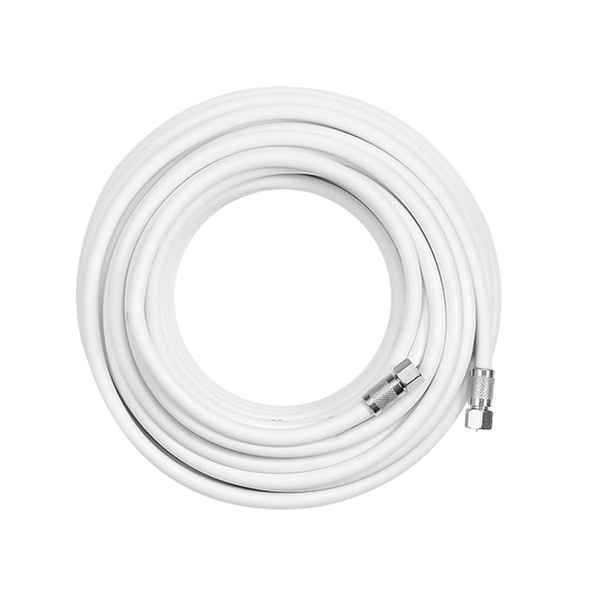

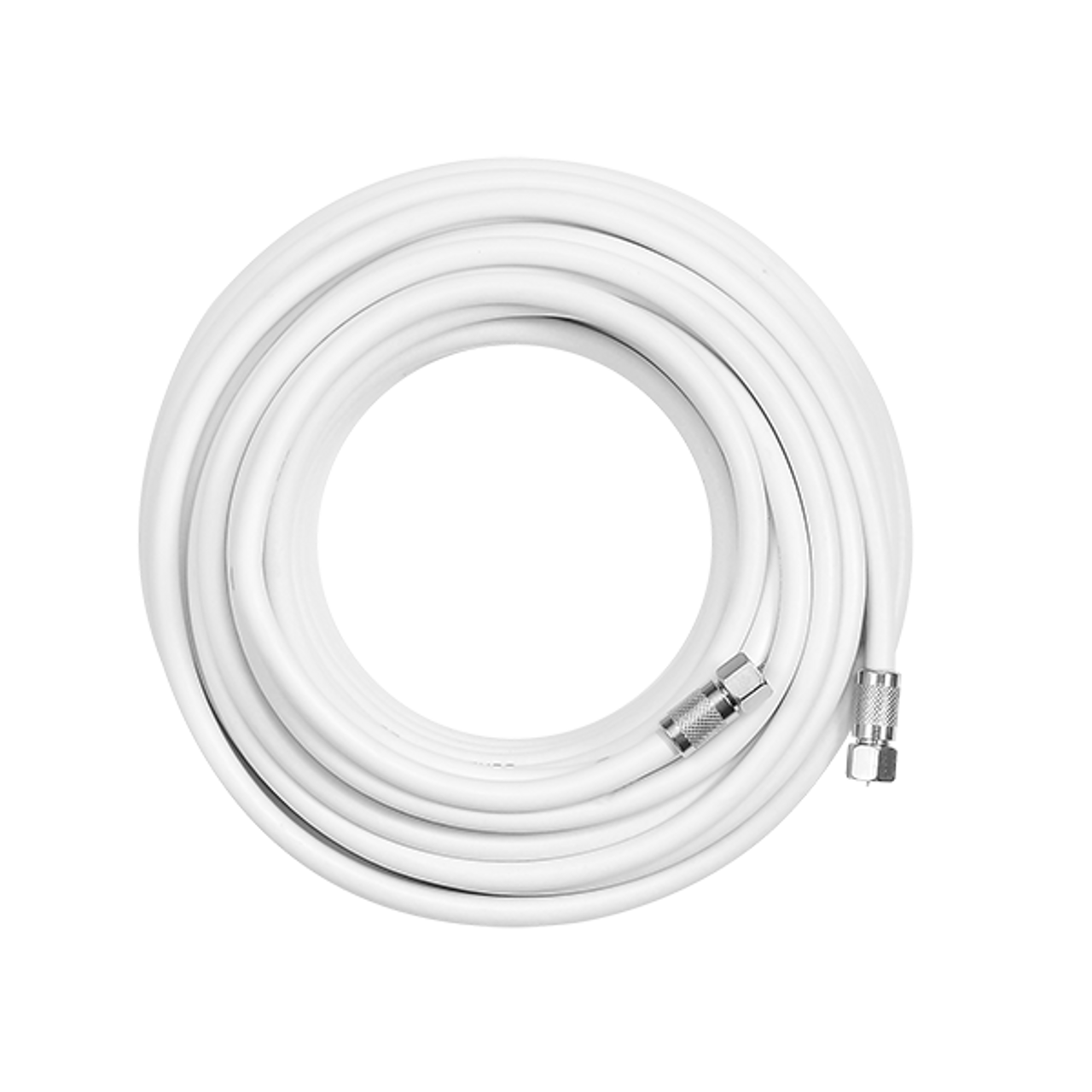

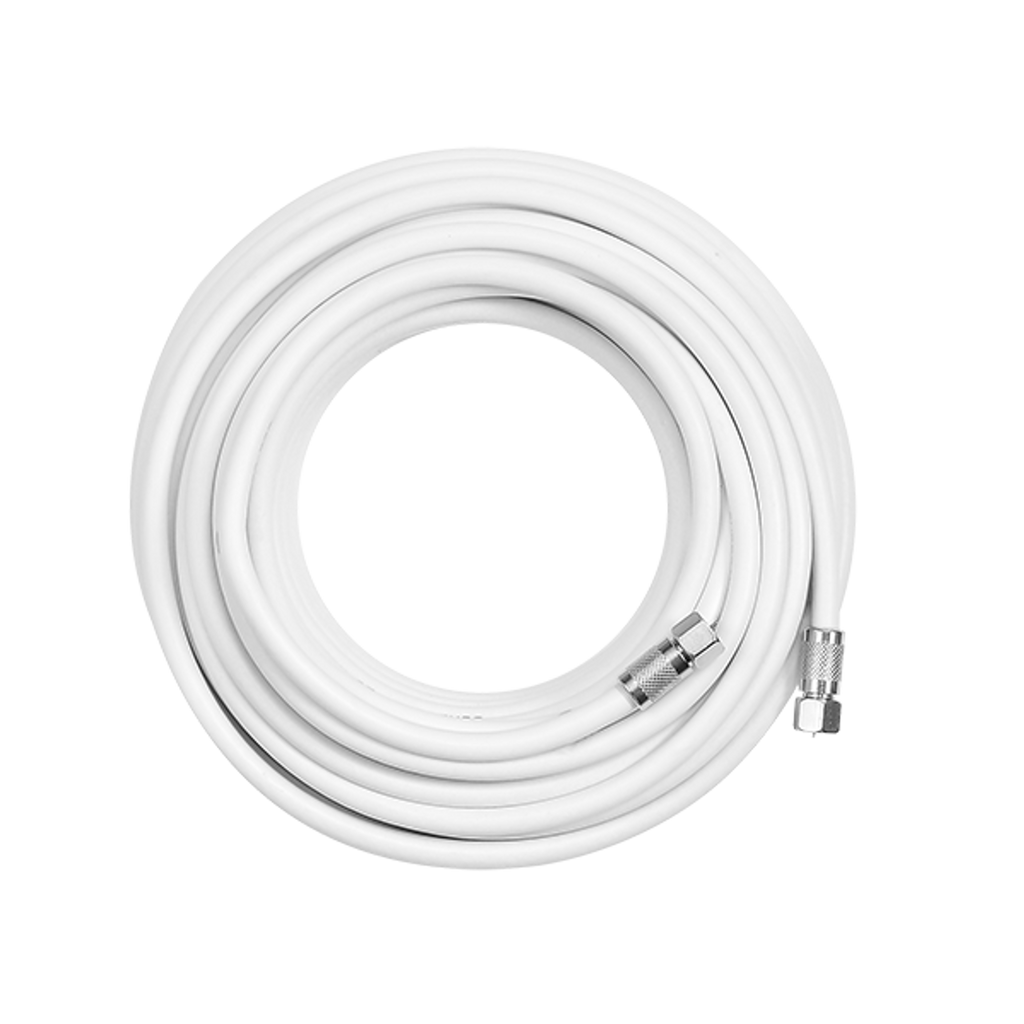

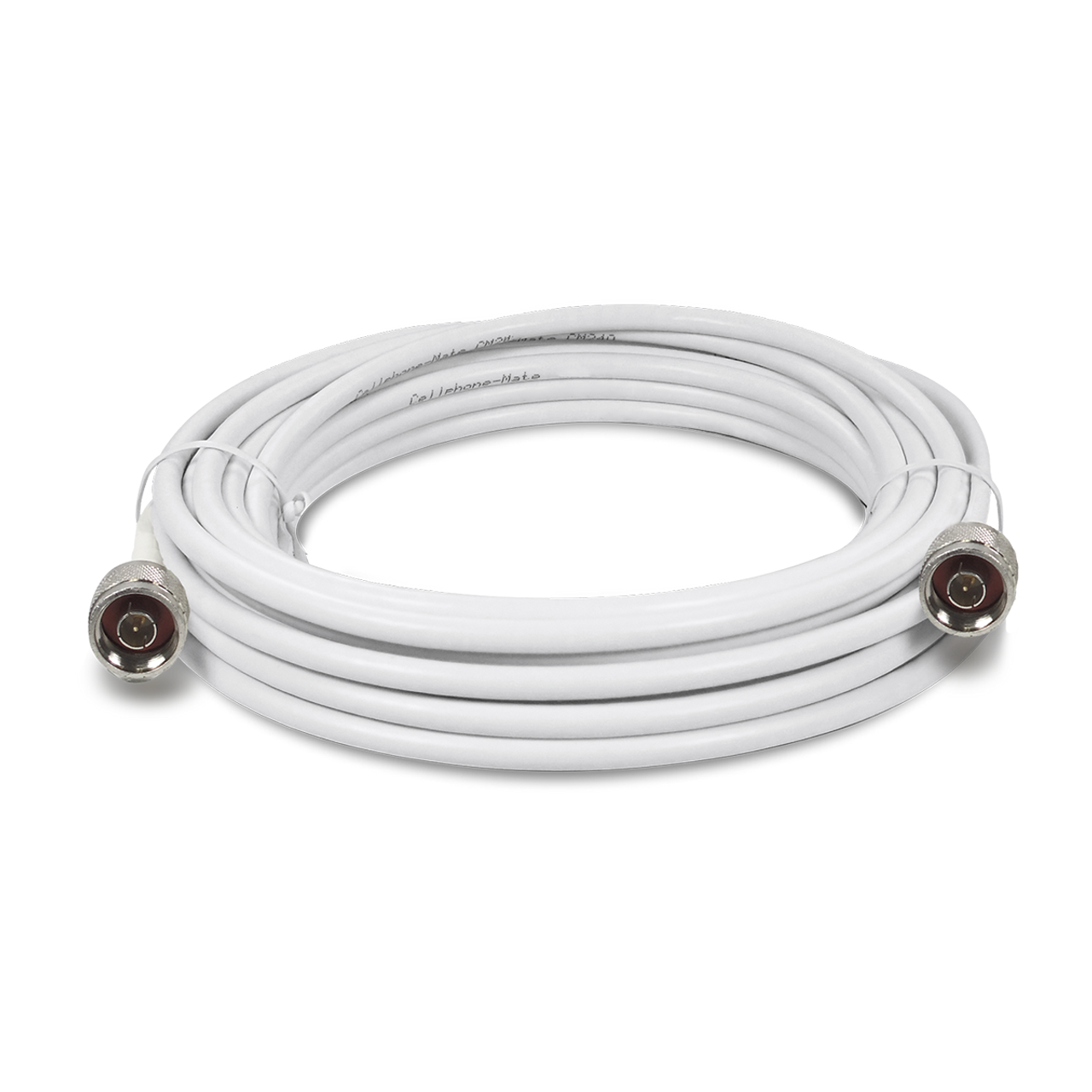

RG-6 (75 ft) / SC-240 (20 ft) |
|
RF Connectors: |
N-Female (inside), F-Female (outside) |
|
Power Consumption: |
≤25W |
|
Operation Temperature: |
-4º to +158º F (Outside Amp) -4º to +104º F (Inside Host) |
|

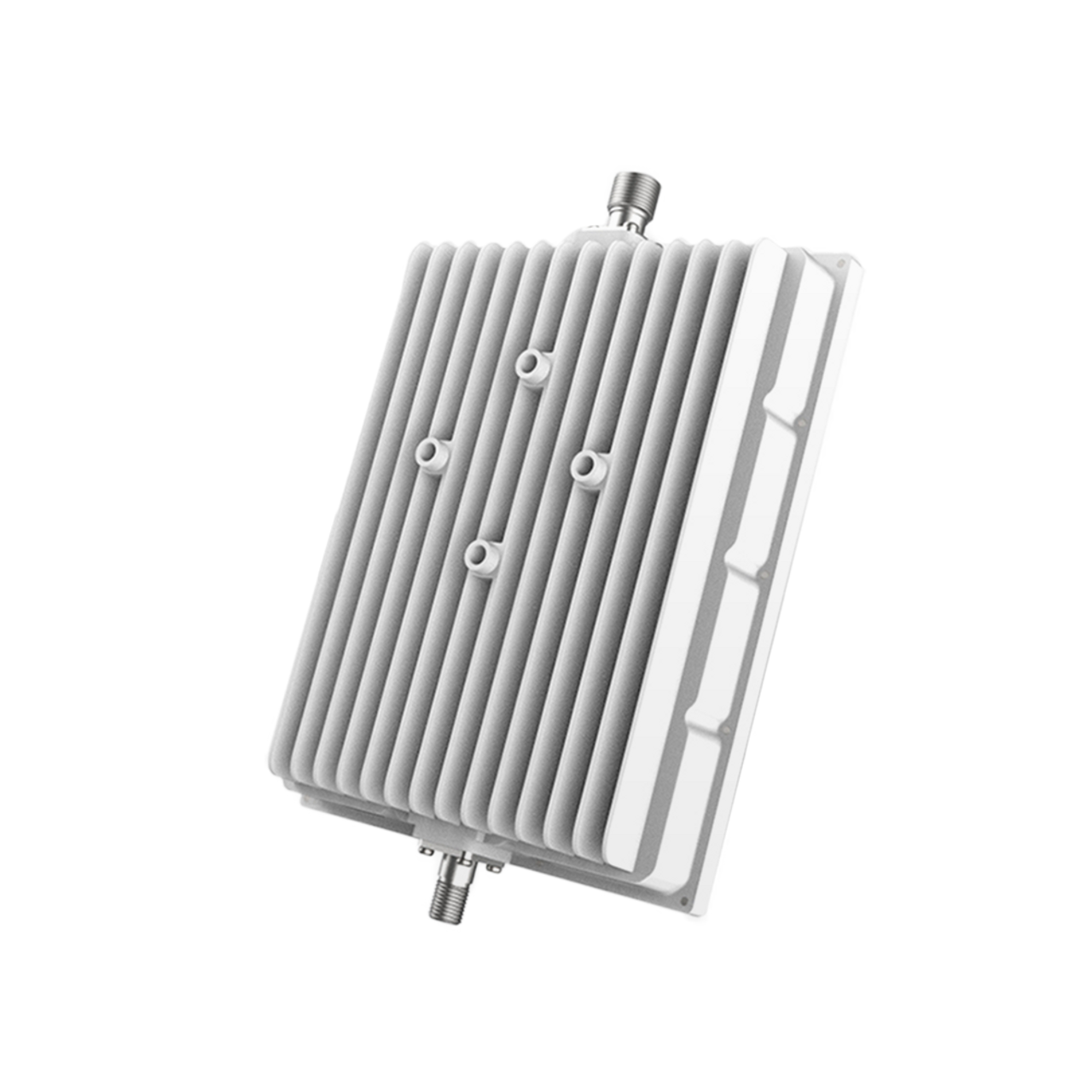

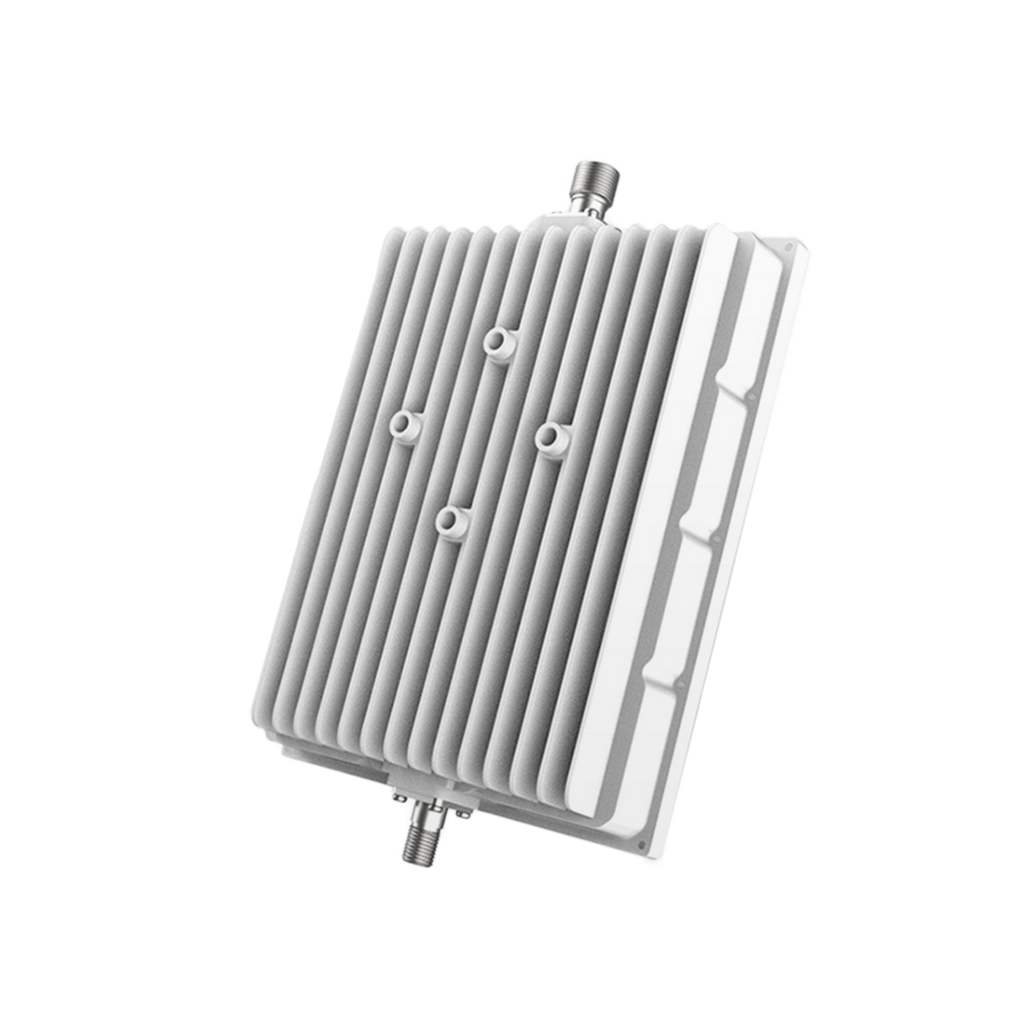

Outside Amp Dimensions: |
7.87" x 4.96" x 1.22" |
|
Weight: |
1.85 lb |
|

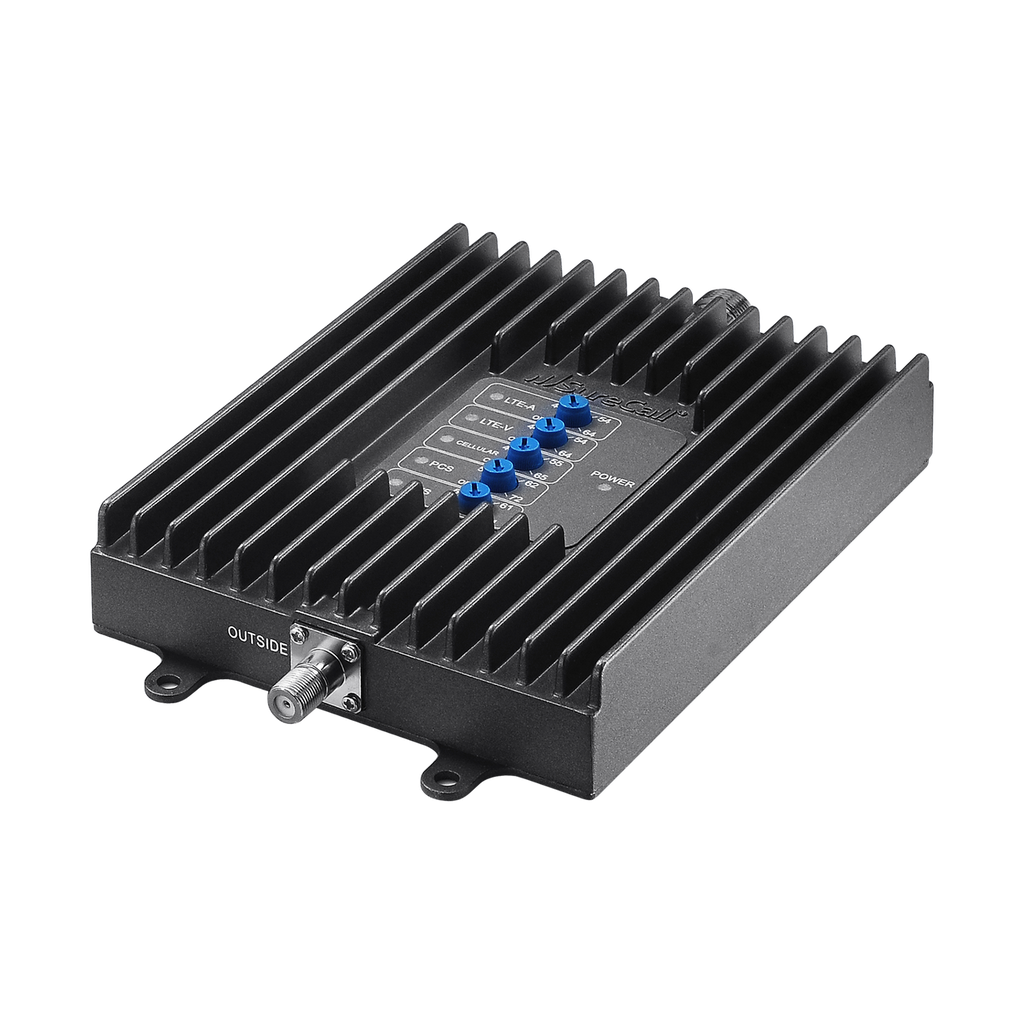

Inside Host Unit Dimensions: |
8.05" x 5.22" x 1.46" |
|
Weight: |
1.90 lb |
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
- You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
- You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
- WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
- Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
